Original project description
Our company has developed in-depth cooperation with the Institute of Engineering Thermophysics, Chinese Academy of Sciences to develop a

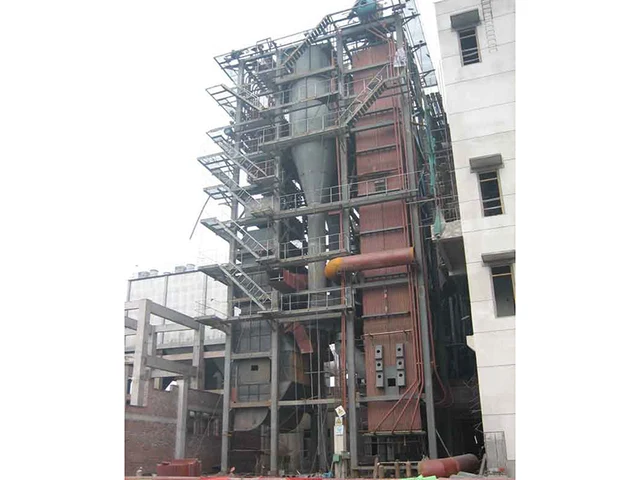

Our company has developed in-depth cooperation with the Institute of Engineering Thermophysics, Chinese Academy of Sciences to develop a circulating fluidized bed of 75~260t/h (secondary) high temperature (secondary) high pressure parameters, single drum natural circulation, high temperature steam cooling cyclone separator CFB) boiler. The CFB furnace type has the following characteristics:
1) Full-membrane fireplace chamber structure; 2) High-efficiency cyclone separator; 3) U-shaped self-balancing feeder; 4) Water-cooled air distribution isobaric air chamber; 5) Built-in counterflow column type wind cap; 6) Reliable anti-wear measures; 7) Pollutant control technology
Desulfurization: A combination of furnace desulfurization and tail semi-dry desulfurization;
Denitrification: Adopting low-temperature supplementary combustion, uniform air intake and distribution, uniform coal feeding, and improved separation efficiency, etc., significantly reducing the original NOx emission concentration.
